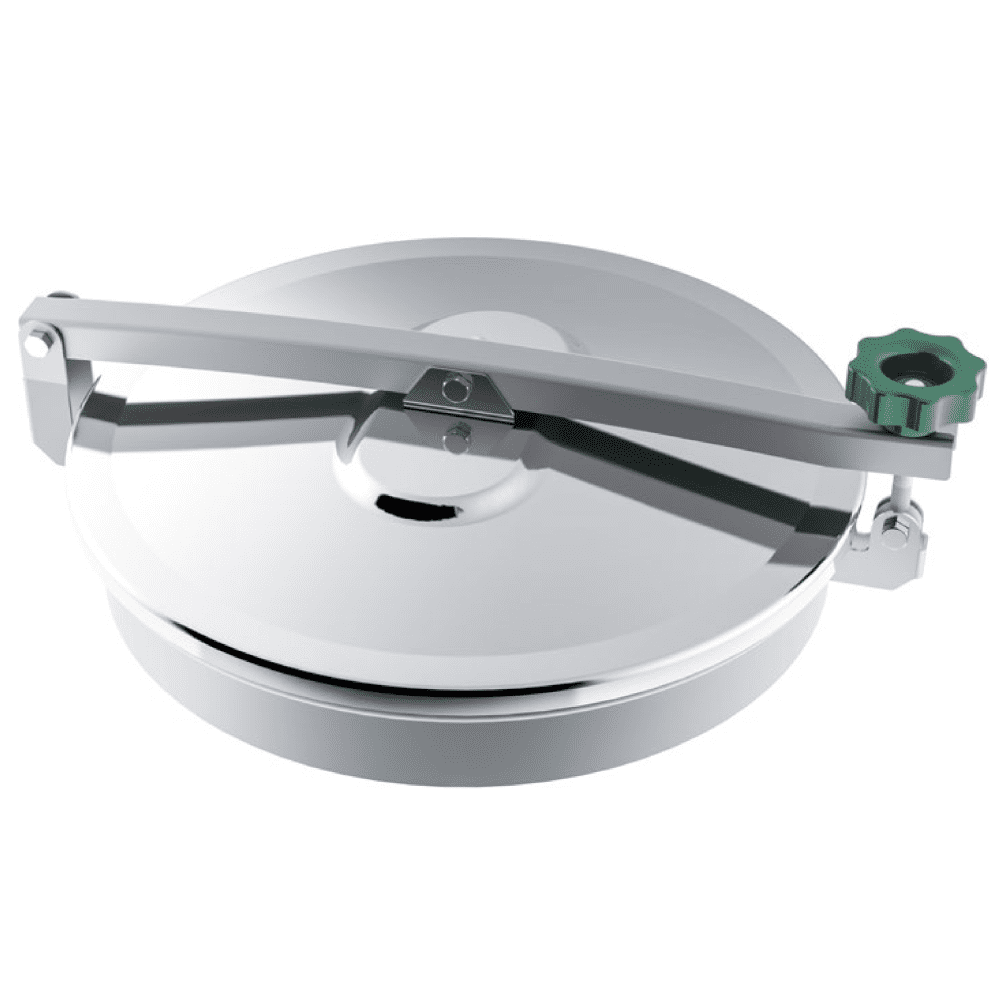

Anti-stagnation round manhole cover with back-side opening

960B SERIES

Manhole cover
DN150 | 220 | 300 | 400 | 500 | 600 mm
Gasket on the lid
For STAINLESS STEEL

Additional information

Installation	On stainless steel
Product type	Manhole cover
Shape	Round anti-stagnation
Diameter	150, 220, 300, 400, 500, 600
Opening	Outwards
Characteristics	Back-side opening

Material:

AISI304L – AISI316L

Notes:

Non-contact details in AISI304L
Gasket on the lid

Available certificates:

MOCA – 3.1 – FDA – 1935/04 CE

Pressure:

958B DN150: 0 / +0,02 BAR
959B DN220: 0 / +0,02 BAR
960B DN300: 0 / +0,02 BAR
962B DN400: 0 / +0,02 BAR
964B DN500: 0 / +0,02 BAR
965B DN600: 0 / +0,02 BAR

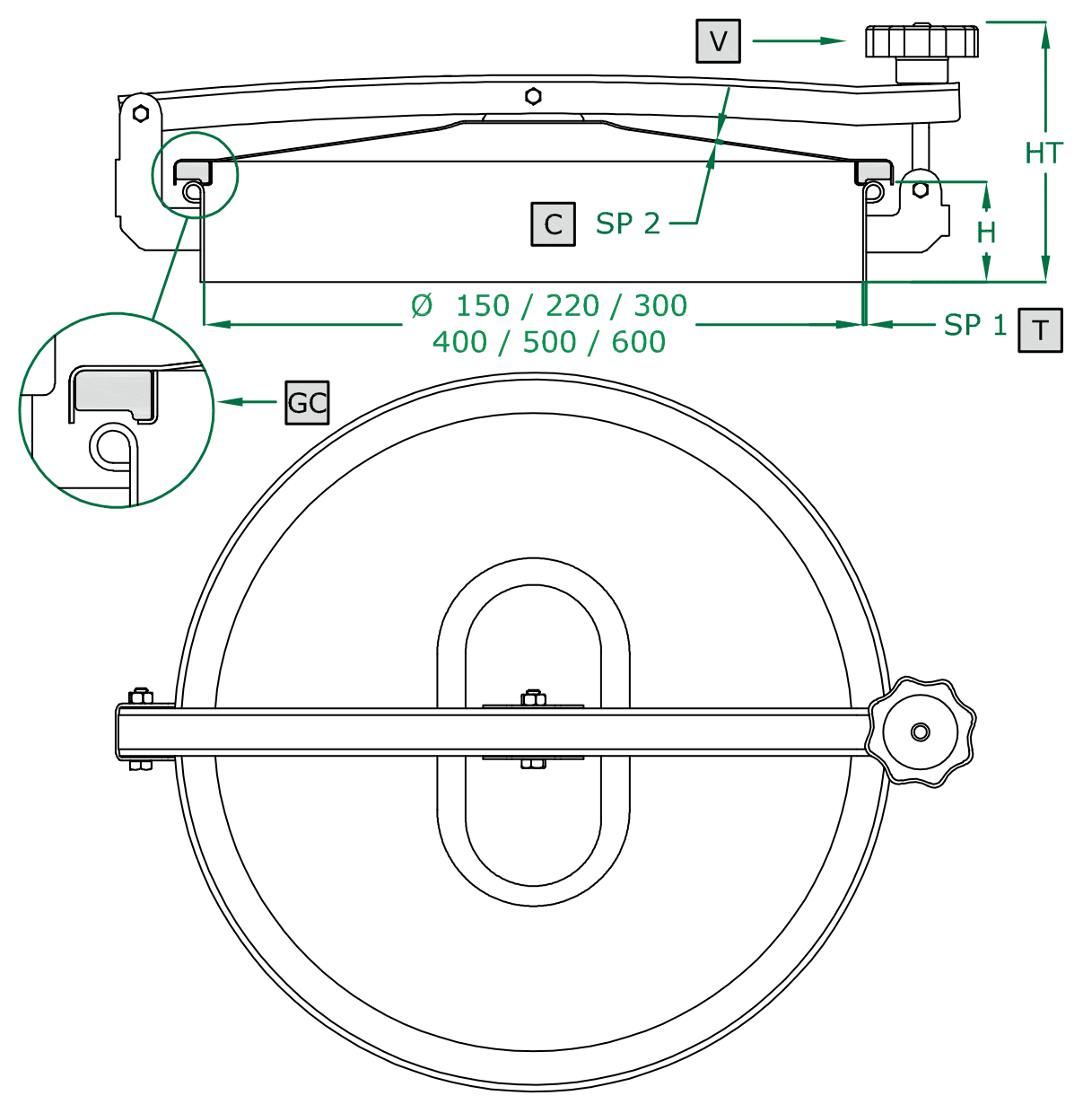

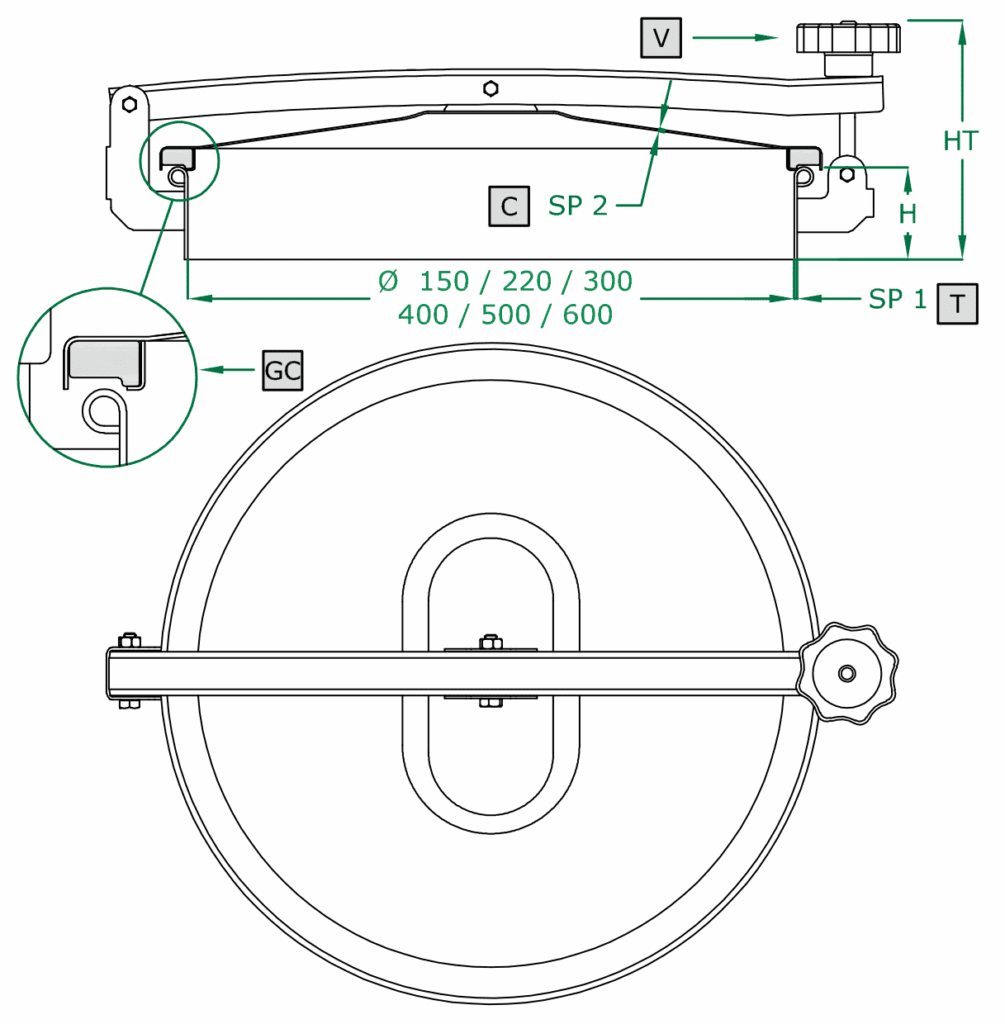

Drawing

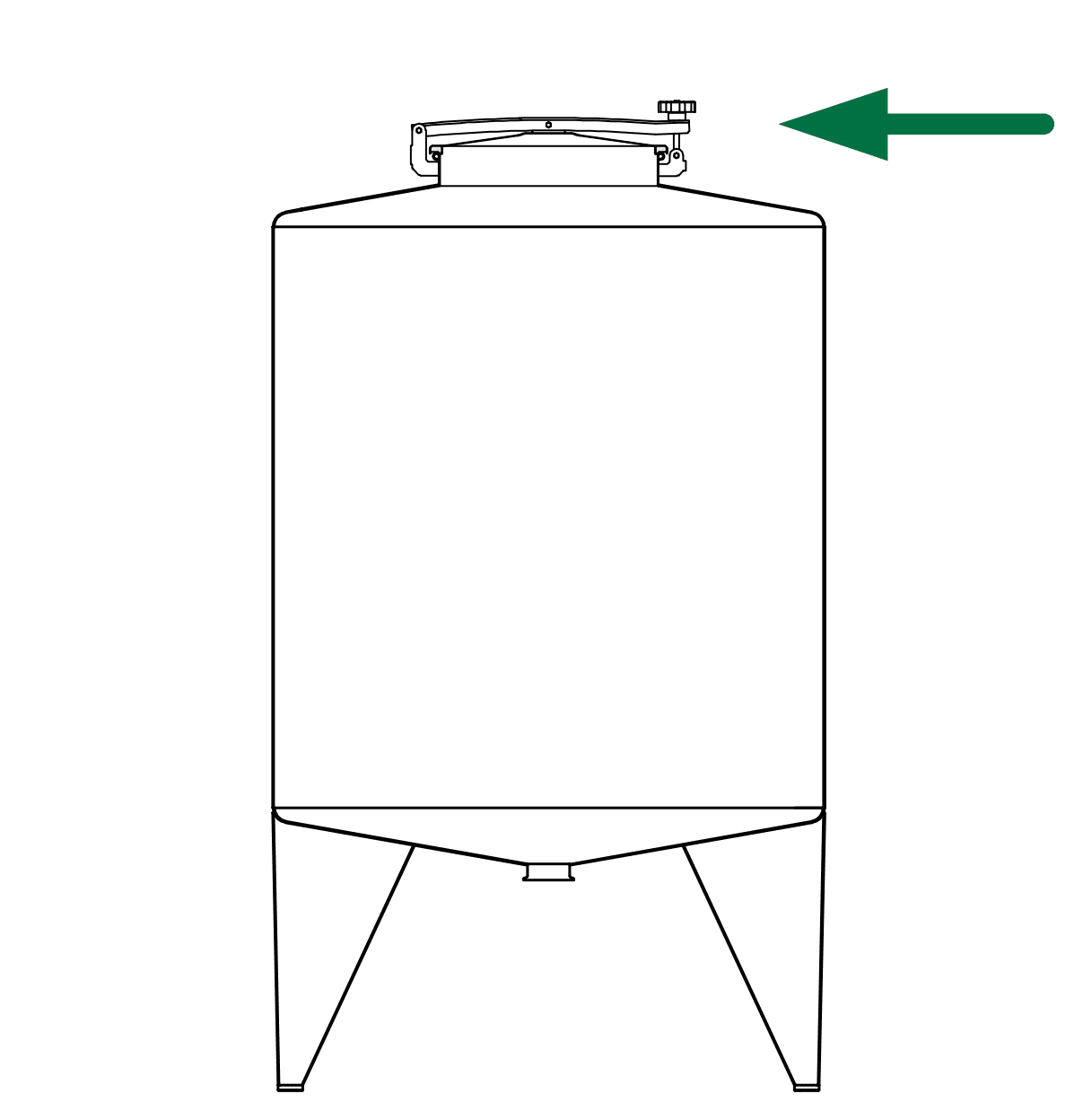

Installation EX
