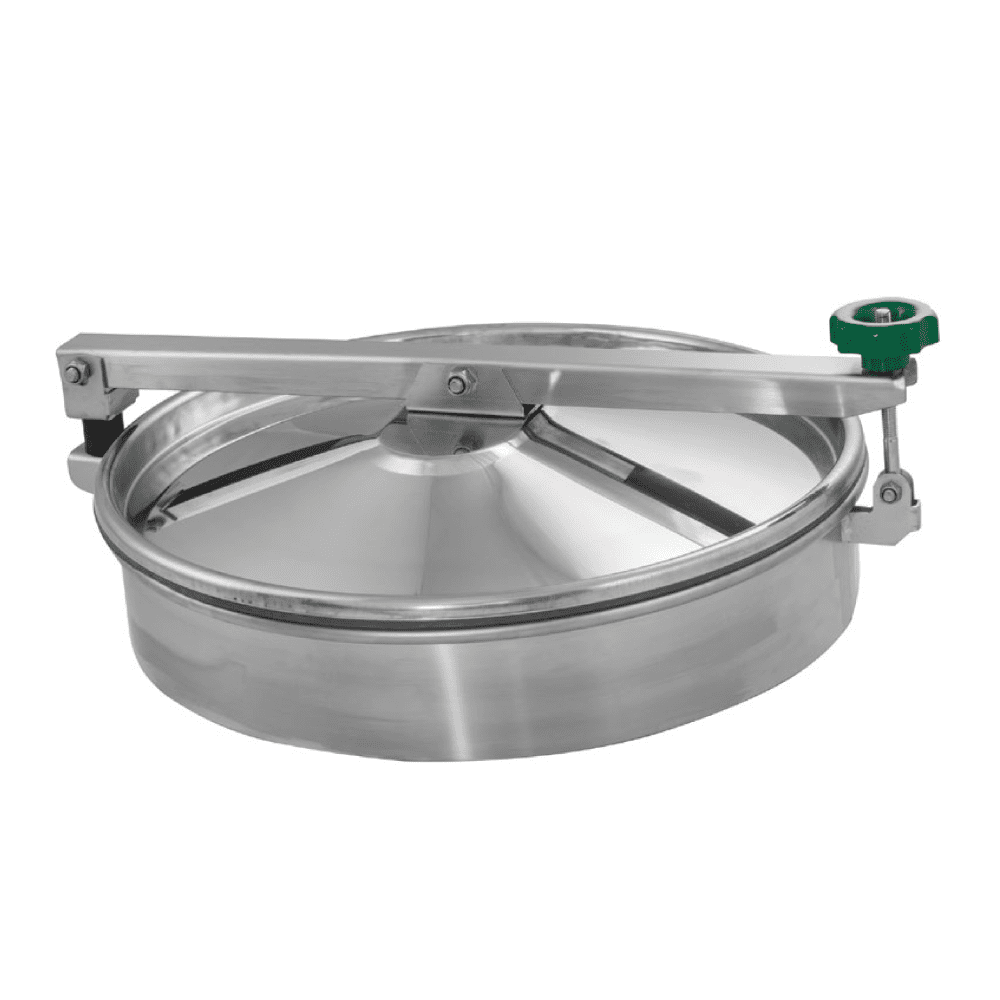

Circular manhole covercover with back-side and side-swing opening

570R SERIES

Manhole cover
DN300 | 380 | 400 | 420 | 500 | 600 mm
For STAINLESS STEEL

Additional information

Installation	On stainless steel
Product type	Manhole cover
Shape	Round
Diameter	300, 380, 400, 420, 500, 600
Opening	Outwards
Characteristics	Side-swing opening
Vacuum	No vacuum

Material:

AISI304L – AISI316L

Notes:

Non-contact details in AISI304L

Available certificates:

MOCA – 3.1 – FDA – 1935/04 CE

Pressure:

570R DN300: 0 / +0.06 BAR
571R DN380: 0 / +0.05 BAR
572R DN400: 0 / +0.05 BAR
700 DN380: MAX 0,05 BAR
700 DN420: MAX 0,05 BAR
575R DN600: 0 / +0.04 BAR

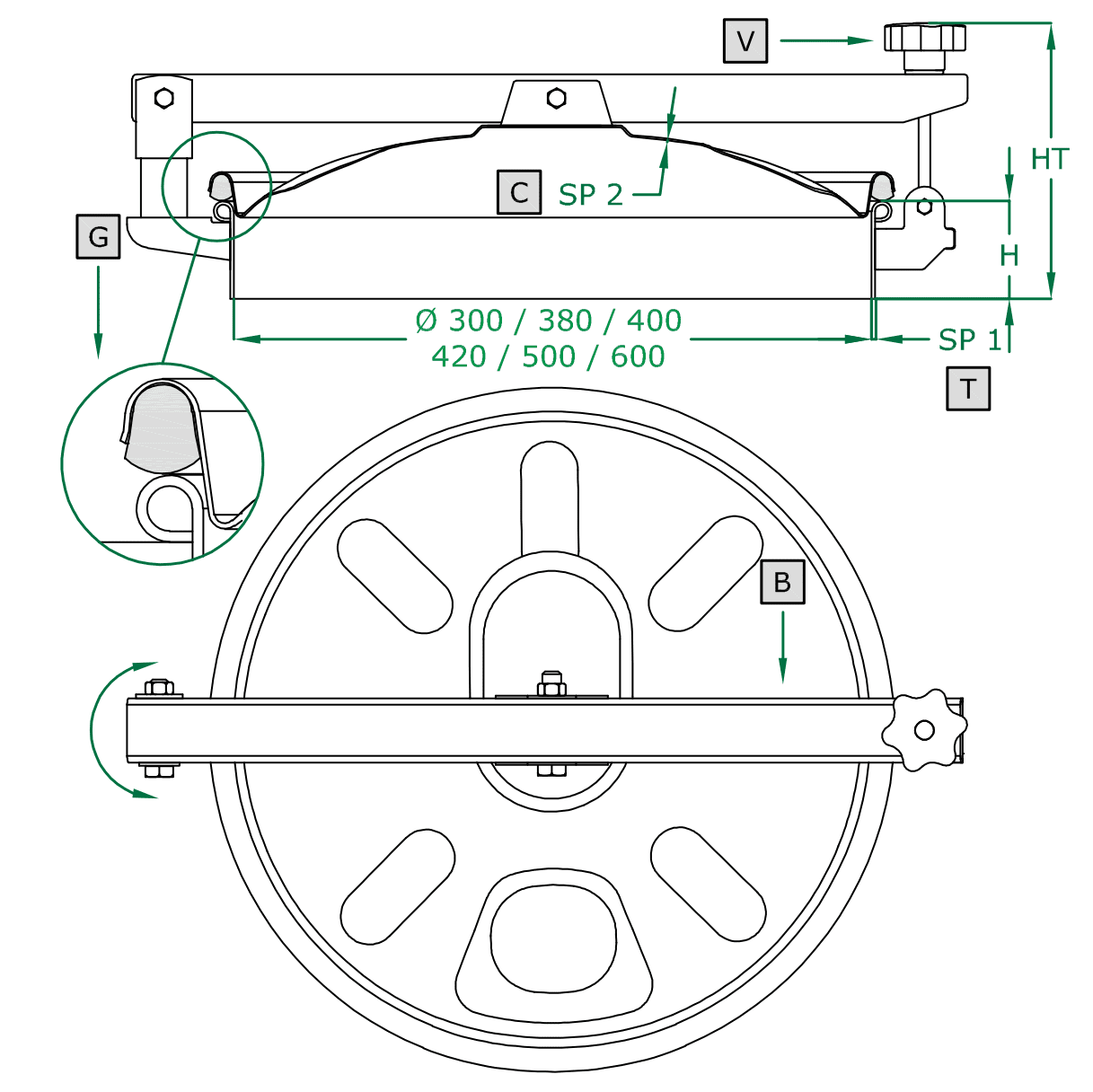

Drawing

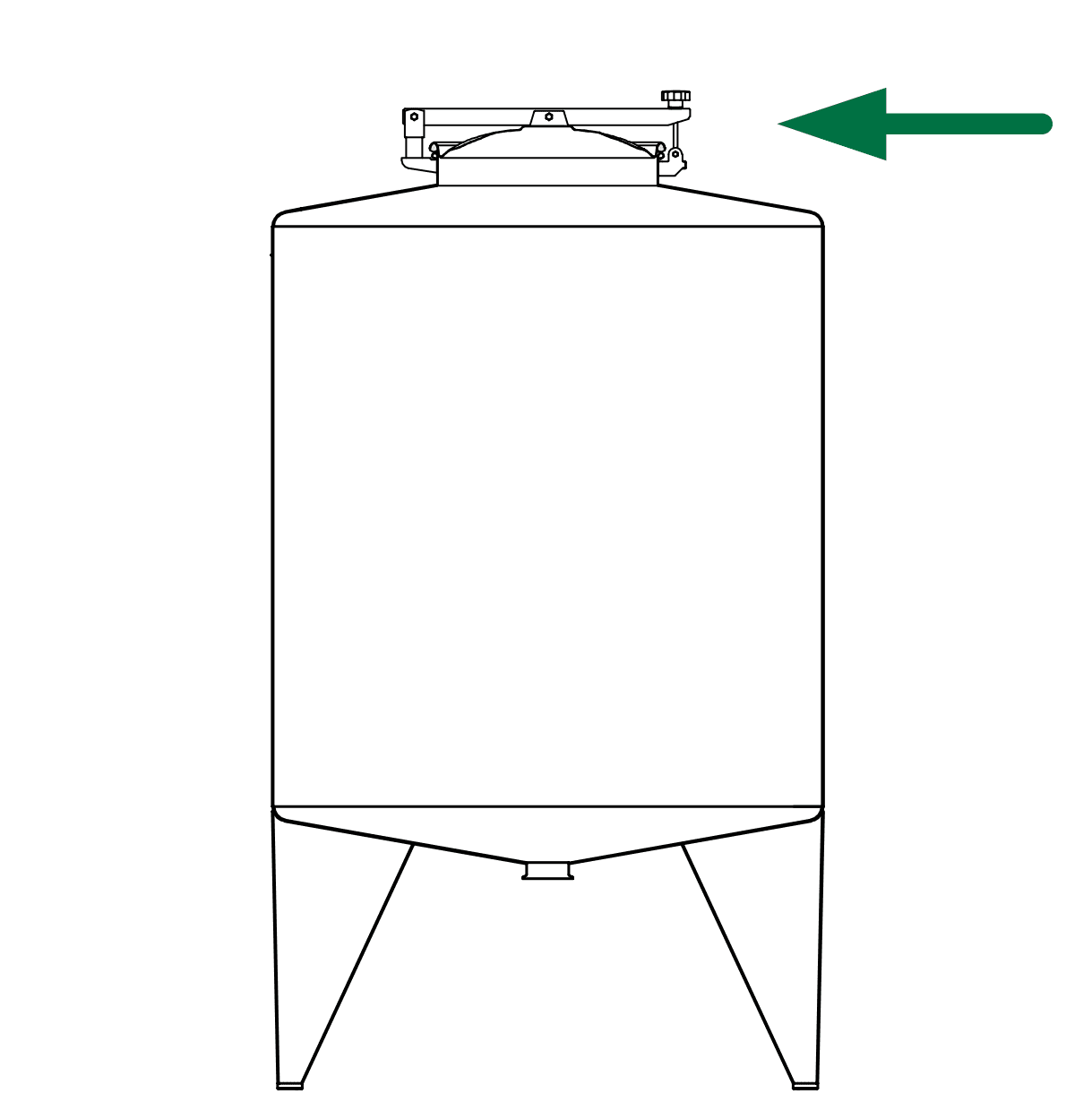

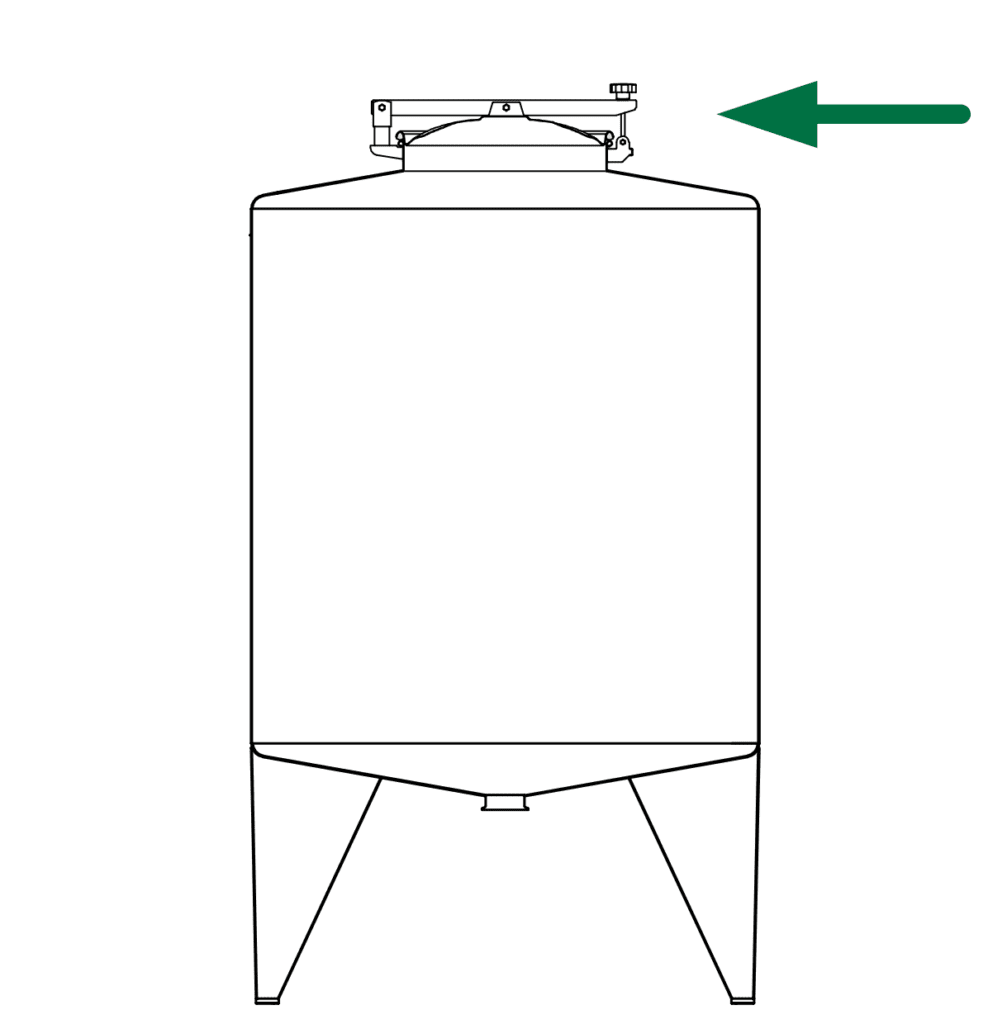

Installation EX
