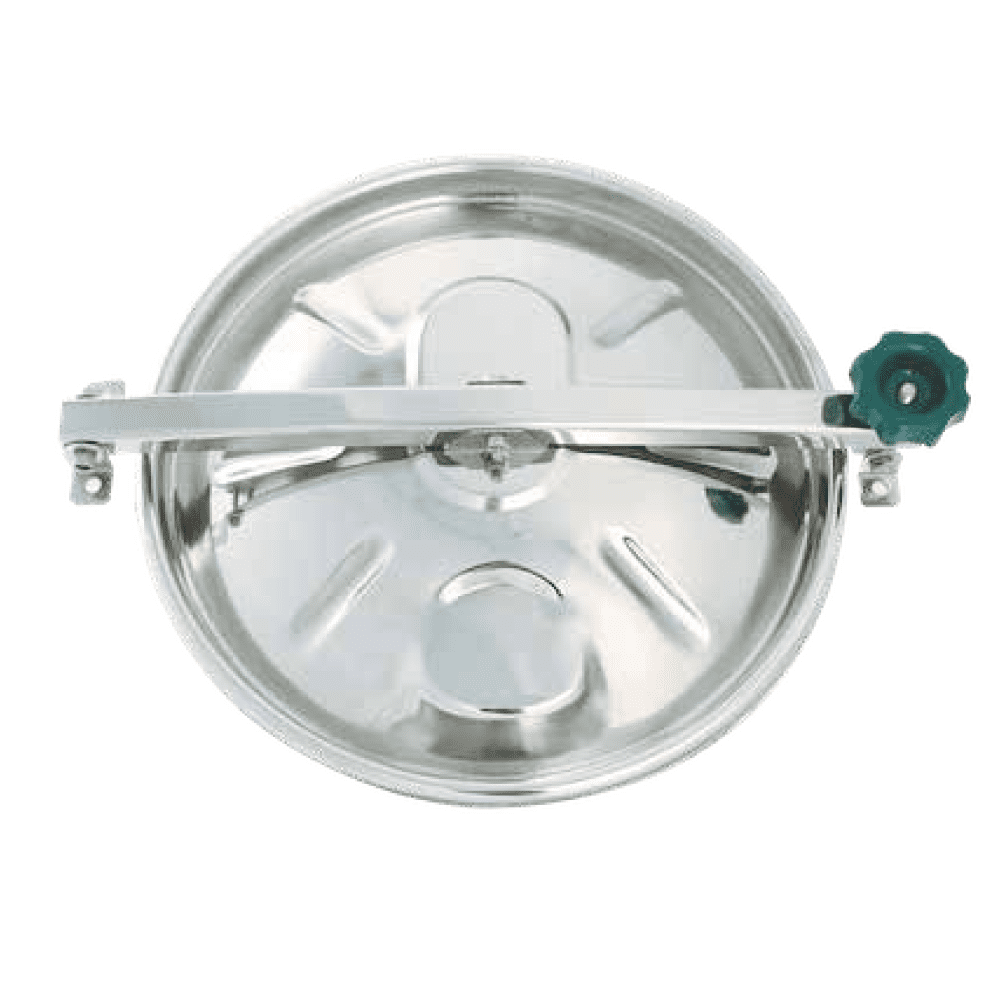

Tilting opening round manhole cover

560.VT SERIES

Manhole cover
DN200 | 300 | 380 | 400 | 420 | 500 | 600 mm
For FIBERGLASS

Additional information

Installation	On fiberglass
Product type	Manhole cover
Shape	Round
Diameter	200, 300, 380, 400, 420, 500, 600
Opening	Outwards
Characteristics	Back-side opening

Material:

AISI304L – AISI316L

Notes:

Non-contact details in AISI304L

Available certificates:

MOCA – 3.1 – FDA – 1935/04 CE

Pressure:

559.VT DN200: 0 / +0,04 BAR
560.VT DN300: 0 / +0,03 BAR
561.VT DN380: 0 / +0,02 BAR
562.VT DN400: 0 / +0,02 BAR
563.VT DN420: 0 / +0,02 BAR
564.VT DN500: 0 / +0,02 BAR
565.VT DN600: 0 / +0,01 BAR
